Hitachi Cooling & Heating / SERIES OVERVIEW

Hitachi HPCP Packaged Chiller Plants

Factory-packaged chilled-water plant

Brand
Hitachi Cooling & Heating
Series
HPCP
Equipment category
Chillers
Request a QuoteRequest Technical Information

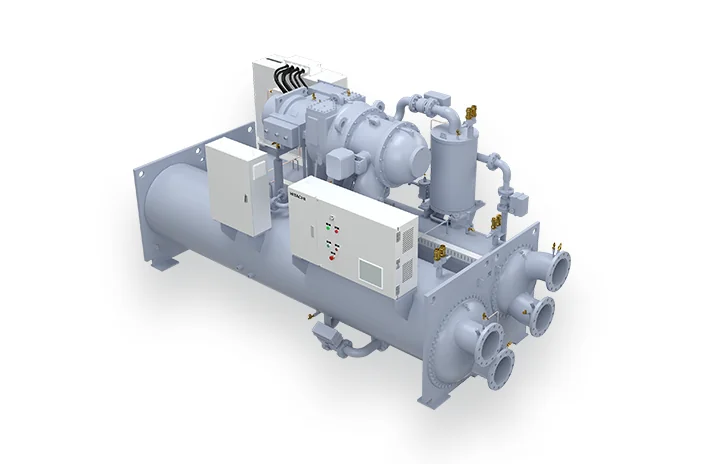

Hitachi HPCP packaged chiller plant configuration
Representative image. Appearance may vary by configuration.

Product overview

HPCP brings chiller equipment, water systems and controls into a manufacturer-packaged plant arrangement. The brochure distinguishes HPCPZ screw-based selections from HPCPG centrifugal-based selections. Plant power, pump duties and transport dimensions describe the selected package; they are different from the ratings of an individual chiller. Delta M&E supports equipment selection and supply coordination for the required manufacturer configuration.

Key technical specifications

Match the complete model and configuration to your design duty. Compare ratings only at the stated water and ambient conditions; then send the model reference, quantity and project requirements for review.

Scroll each table horizontally to compare all columns. Model references remain visible as you scroll.

Screw-based packaged plant — capacity and plant power

Factory-packaged chilled-water plant reference selections.

Screw-based packaged plant — capacity and plant power. Factory-packaged chilled-water plant reference selections.
Model referenceCooling capacity(kW)Cooling capacity (printed)(USRT)Overall plant power(kW)
HPCPZ155Request a Quote549156.1123.2
HPCPZ210Request a Quote732208.2166.3
HPCPZ260Request a Quote915260.2202.3
HPCPZ310Request a Quote1098312.3235.1
HPCPZ365Request a Quote1281364.3280.7
HPCPZ420Request a Quote1464416.4312.8
HPCPZ470Request a Quote1647468.4356.9
HPCPZ520Request a Quote1830520.5396.3
  • Chilled water entering / leaving 12 / 7 °C; condenser water entering / leaving 30 / 35 °C. kW and USRT are independently printed brochure values; no conversion is substituted.
  • Overall plant power is separate from chiller-only input. Dimensions / transport weight exclude the cooling tower; listed weights are calculated design references, subject to the selected configuration.
  • Pump heads are in m. The brochure distinguishes standard, optional and selected equipment. Final plant scope, transport sections and site connections require a project selection.
  • Manufacturer reference: Z0050064-251030; physical PDF page 5.

Screw-based packaged plant — water systems and transport

Factory-packaged chilled-water plant reference selections.

Screw-based packaged plant — water systems and transport. Factory-packaged chilled-water plant reference selections.
Model referenceChilled-water flow(m³/h)Chilled-water pump headChilled-water connection (DN, mm)Condenser-water flow(m³/h)Condenser-water pump headCondenser-water connection (DN, mm)Length(mm)Width(mm)Height (excluding tower)(mm)Transport weight (excluding tower)(kg)
HPCPZ155Request a Quote94.425-35 mDN15011815-20 mDN15080003200320011009
HPCPZ210Request a Quote125.925-35 mDN150157.415-20 mDN15080003200320011497
HPCPZ260Request a Quote157.425-35 mDN150196.715-20 mDN15080003200320011736
HPCPZ310Request a Quote188.925-35 mDN200236.115-20 mDN200100003200320015390
HPCPZ365Request a Quote220.325-35 mDN200275.415-20 mDN200100003200320015872
HPCPZ420Request a Quote251.825-35 mDN200314.815-20 mDN200100003200320016215
HPCPZ470Request a Quote283.325-35 mDN200354.115-20 mDN200100003200320016599
HPCPZ520Request a Quote314.825-35 mDN200393.515-20 mDN200100003200320016959
  • Chilled water entering / leaving 12 / 7 °C; condenser water entering / leaving 30 / 35 °C. kW and USRT are independently printed brochure values; no conversion is substituted.
  • Overall plant power is separate from chiller-only input. Dimensions / transport weight exclude the cooling tower; listed weights are calculated design references, subject to the selected configuration.
  • Pump heads are in m. The brochure distinguishes standard, optional and selected equipment. Final plant scope, transport sections and site connections require a project selection.
  • Manufacturer reference: Z0050064-251030; physical PDF page 5.

Centrifugal-based packaged plant — capacity and plant power

Factory-packaged chilled-water plant reference selections.

Centrifugal-based packaged plant — capacity and plant power. Factory-packaged chilled-water plant reference selections.
Model referenceCooling capacity(kW)Cooling capacity (printed)(USRT)Overall plant power(kW)
HPCPG300Request a Quote1055300220.3
HPCPG400Request a Quote1407400293.6
HPCPG500Request a Quote1758500359.2
HPCPG600Request a Quote2110600419
HPCPG700Request a Quote2461700500.4
HPCPG800Request a Quote2813800574.3
HPCPG900Request a Quote3165900658.3
HPCPG1000Request a Quote35161000724.6
  • Chilled water entering / leaving 12 / 7 °C; condenser water entering / leaving 30 / 35 °C. kW and USRT are independently printed brochure values; no conversion is substituted.
  • Overall plant power is separate from chiller-only input. Dimensions / transport weight exclude the cooling tower; listed weights are calculated design references, subject to the selected configuration.
  • Pump heads are in m. The brochure distinguishes standard, optional and selected equipment. Final plant scope, transport sections and site connections require a project selection.
  • Manufacturer reference: Z0050064-251030; physical PDF page 5.

Centrifugal-based packaged plant — water systems and transport

Factory-packaged chilled-water plant reference selections.

Centrifugal-based packaged plant — water systems and transport. Factory-packaged chilled-water plant reference selections.
Model referenceChilled-water flow(m³/h)Chilled-water pump headChilled-water connection (DN, mm)Condenser-water flow(m³/h)Condenser-water pump headCondenser-water connection (DN, mm)Length(mm)Width(mm)Height (excluding tower)(mm)Transport weight (excluding tower)(kg)
HPCPG300Request a Quote181.425-35 m150211.115-20 m200100003800320014873
HPCPG400Request a Quote241.925-35 m200281.415-20 m200100003800320015705
HPCPG500Request a Quote302.425-35 m200349.815-20 m200100003800320017119
HPCPG600Request a Quote362.925-35 m250419.715-20 m250100003800320017469
HPCPG700Request a Quote423.425-35 m250491.415-20 m250120004000350019830
HPCPG800Request a Quote483.825-35 m250561.515-20 m300120004000350020496
HPCPG900Request a Quote544.325-35 m300631.415-20 m300120004000350022312
HPCPG1000Request a Quote604.825-35 m300701.415-20 m350120004000350023188
  • Chilled water entering / leaving 12 / 7 °C; condenser water entering / leaving 30 / 35 °C. kW and USRT are independently printed brochure values; no conversion is substituted.
  • Overall plant power is separate from chiller-only input. Dimensions / transport weight exclude the cooling tower; listed weights are calculated design references, subject to the selected configuration.
  • Pump heads are in m. The brochure distinguishes standard, optional and selected equipment. Final plant scope, transport sections and site connections require a project selection.
  • Manufacturer reference: Z0050064-251030; physical PDF page 5.

Key configuration options

  • The manufacturer configuration matrix separates standard, optional and selected components, including chillers, pumps, cooling towers, controls and plant services.
  • The listed plant height and transport weight exclude the cooling tower. Determine transport sections, lifting access and site connections for the selected package.
  • Confirm the chiller reference and final manufacturer equipment schedule before ordering. Short host references are not interchangeable with standalone chiller selection codes.

Applications

  • Commercial and industrial projects evaluating factory-packaged chilled-water equipment.
  • Procurement schedules that need coordinated chiller, water-system and control selections.

Information for equipment selection

  • Plant cooling duty, intended HPCPZ / HPCPG selection and manufacturer equipment schedule.
  • Water temperatures, flows, pump head, power supply and required package / control scope.
  • Available site space, cooling-tower arrangement, transport limits, destination and division of site work.

Application suitability requires a review of the project requirements and selected model.

Project equipment procurement

Delta M&E reviews equipment requirements, manufacturer selections and supply arrangements for each inquiry. Send your BOQ or equipment schedule to discuss the required model, documentation and destination.
