Hitachi Cooling & Heating / SERIES OVERVIEW

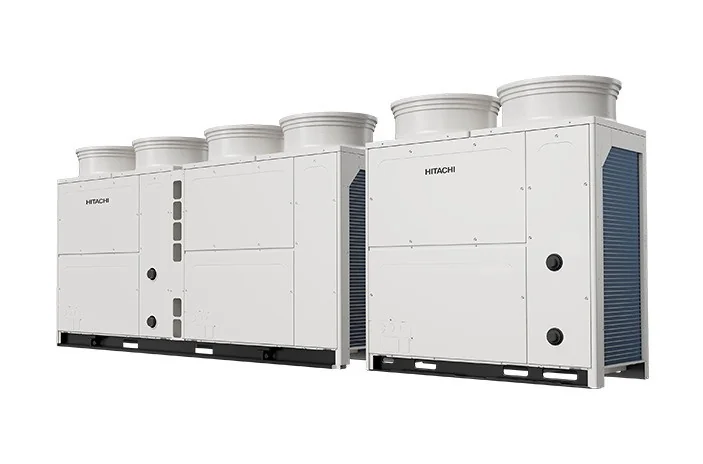

Hitachi V Series Inverter Modular Chillers & Heat Pumps

Air-cooled inverter scroll modular chiller / heat pump

Brand
Hitachi Cooling & Heating
Series
V / AVM
Equipment category
Heat Pumps
Request a QuoteRequest Technical Information
Hitachi V / AVM inverter modular chiller and heat pump series

Product overview

The V / AVM range uses R410A inverter scroll modules for chilled-water or heat-pump duties. The brochure groups 65, 130 and 150 kW cooling selections under RC(H)UA model patterns. Cooling-only and heat-pump weights differ, and heating ratings belong to the heat-pump configuration. Select the duty first, then confirm the complete equipment code and module arrangement.

Key technical specifications

Match the complete model and configuration to your design duty. Compare ratings only at the stated water and ambient conditions; then send the model reference, quantity and project requirements for review.

Scroll each table horizontally to compare all columns. Model references remain visible as you scroll.

V / AVM — cooling selection references

Printed cooling-only / heat-pump family references; no expanded SKU is asserted.

V / AVM — cooling selection references. Printed cooling-only / heat-pump family references; no expanded SKU is asserted.
Model referenceCooling capacity(kW)Cooling input(kW)
RC(H)UA065AVMRequest a Quote6519.2
RC(H)UA130AVMRequest a Quote13038.5
RC(H)UA150AVMRequest a Quote15047.2
  • Cooling: leaving chilled water 7 °C, water-flow coefficient 0.172 m³/(h·kW), outdoor air 35 °C dry bulb.
  • Heating ratings apply only to the heat-pump configuration. Leaving hot water 45 °C, water-flow coefficient 0.172 m³/(h·kW); the source states outdoor wet bulb 6 °C without a dry-bulb value in this table note.
  • Water-side fouling factor 0.018 m²·°C/kW. Main supply 380 V / 3 phase / 50 Hz; R410A. Ratings do not establish 60 Hz suitability.
  • Printed RC(H)UA references group cooling-only and heat-pump selections; they are not complete order codes. Heating data applies to the heat-pump branch only. Heat-recovery and extended configurations require their own manufacturer selection.
  • Control supply is printed as 24 V / 1 phase / 50 Hz. Noise is a semi-anechoic, 100% cooling-load test; it is not site noise. Factory mating flanges / threaded pipe are not included.
  • Manufacturer reference: Z0050007-251008; physical PDF page 9.

V / AVM — heat-pump ratings

Heat-pump branch of the printed reference only; not a heating rating for cooling-only equipment.

V / AVM — heat-pump ratings. Heat-pump branch of the printed reference only; not a heating rating for cooling-only equipment.
Model referenceHeating capacity(kW)Heating input(kW)
RC(H)UA065AVMRequest a Quote6821.4
RC(H)UA130AVMRequest a Quote13642.8
RC(H)UA150AVMRequest a Quote15047.2
  • Cooling: leaving chilled water 7 °C, water-flow coefficient 0.172 m³/(h·kW), outdoor air 35 °C dry bulb.
  • Heating ratings apply only to the heat-pump configuration. Leaving hot water 45 °C, water-flow coefficient 0.172 m³/(h·kW); the source states outdoor wet bulb 6 °C without a dry-bulb value in this table note.
  • Water-side fouling factor 0.018 m²·°C/kW. Main supply 380 V / 3 phase / 50 Hz; R410A. Ratings do not establish 60 Hz suitability.
  • Printed RC(H)UA references group cooling-only and heat-pump selections; they are not complete order codes. Heating data applies to the heat-pump branch only. Heat-recovery and extended configurations require their own manufacturer selection.
  • Control supply is printed as 24 V / 1 phase / 50 Hz. Noise is a semi-anechoic, 100% cooling-load test; it is not site noise. Factory mating flanges / threaded pipe are not included.
  • Manufacturer reference: Z0050007-251008; physical PDF page 9.

V / AVM — module and installation data

Cooling-only and heat-pump net weights are separate.

V / AVM — module and installation data. Cooling-only and heat-pump net weights are separate.
Model referenceMain power supplyRefrigerantRefrigerant circuits(count)Compressors(count)Compressor typeCapacity control (%)Water heat exchangerWater flow(m³/h)Water pressure drop(kPa)Water connectionFans(count)Fan input (as printed)(kW)Total airflow(m³/h)Length(mm)Width(mm)Height(mm)Cooling-only net weight(kg)Heat-pump net weight(kg)Noise level(dB)
RC(H)UA065AVMRequest a Quote380 V / 3 phase / 50 HzR410A22Inverter scroll100–25.0Plate11.18552 inch female thread21.5286002022996215049053868
RC(H)UA130AVMRequest a Quote380 V / 3 phase / 50 HzR410A44Inverter scroll100–25.0Plate22.3655DN65 flange4357200207619712150954105071
RC(H)UA150AVMRequest a Quote380 V / 3 phase / 50 HzR410A44Inverter scroll100–25.0Plate25.868DN65 flange4357200207619712150974107073
  • Cooling: leaving chilled water 7 °C, water-flow coefficient 0.172 m³/(h·kW), outdoor air 35 °C dry bulb.
  • Heating ratings apply only to the heat-pump configuration. Leaving hot water 45 °C, water-flow coefficient 0.172 m³/(h·kW); the source states outdoor wet bulb 6 °C without a dry-bulb value in this table note.
  • Water-side fouling factor 0.018 m²·°C/kW. Main supply 380 V / 3 phase / 50 Hz; R410A. Ratings do not establish 60 Hz suitability.
  • Printed RC(H)UA references group cooling-only and heat-pump selections; they are not complete order codes. Heating data applies to the heat-pump branch only. Heat-recovery and extended configurations require their own manufacturer selection.
  • Control supply is printed as 24 V / 1 phase / 50 Hz. Noise is a semi-anechoic, 100% cooling-load test; it is not site noise. Factory mating flanges / threaded pipe are not included.
  • Manufacturer reference: Z0050007-251008; physical PDF page 9.

Key configuration options

  • RC(H)UA065AVM, RC(H)UA130AVM and RC(H)UA150AVM are printed family-selection references, not three fully specified order codes. Their parentheses have not been expanded into additional SKUs.
  • Cooling and heating tables describe different duties. The shared printed reference does not give a cooling-only unit a heating function.
  • The brochure illustrates mixed-capacity module control for up to 16 modules. A combination needs a manufacturer equipment schedule and hydraulic / control selection; no combined-system performance is calculated here.
  • Heat-recovery and extended operating configurations appear in the naming information but are not assigned the standard table ratings without a separate selection.

Applications

  • Commercial chilled-water equipment procurement with modular capacity selection.
  • Heating and cooling projects comparing manufacturer-selected inverter modules and water-system requirements.

Information for equipment selection

  • Printed AVM reference, cooling-only or heat-pump duty, module quantity and proposed combination.
  • Cooling / heating loads, design water temperatures and flows, ambient conditions and available electrical supply.
  • Installation access, control requirements, destination country and any requested heat-recovery configuration.

Application suitability requires a review of the project requirements and selected model.

Project equipment procurement

Delta M&E reviews equipment requirements, manufacturer selections and supply arrangements for each inquiry. Send your BOQ or equipment schedule to discuss the required model, documentation and destination.

Compare chiller seriesHVAC project applicationsEquipment sourcing

Technical documents

No model-specific technical documents are available for download on this page. Request Technical Information
